Compare products
Explore differences across NIR and MIR products for material analysis and spectroscopy applications.

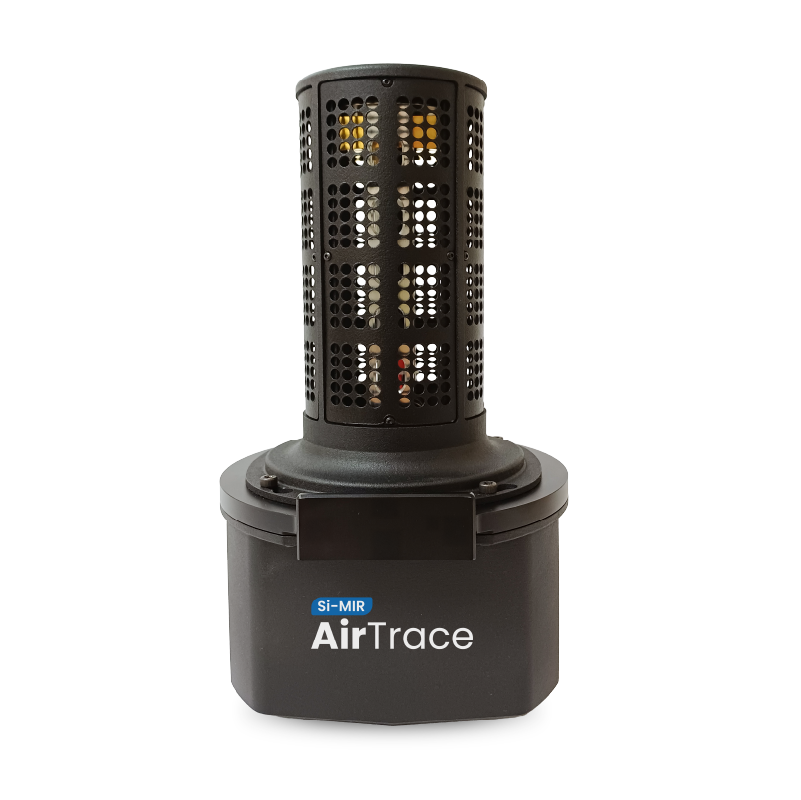

MIR platform for detecting low-concentration gases in open air
7,000–2,130 cm⁻¹ (1.4 - 4.7 μm)
√ Analysis of gases in open air without controling gas flow
√ Analysis and detection of low concentration gases (sub ppm levels)
√ Simultaneous analysis of multiple gases
√ No replaceable consumabled or detection materials
√ Ability to upgrade functionalities without changing hardware
Steady machines, drones, moving vehicles
Transmission
Gases: Hydrocarbons, alcohol vapors, VOCs, CO₂, CH₄, hazardous and industrial gases, breath
>1,700:1
66 cm⁻¹
PbSe
Ethernet
W 293 × L 155 × H 164 mm3
1.6 kg
Si-Spect
Multi-purpose MIR spectral sensing platform covering key fingerprint regions
5,000–1,000 cm-¹(2 - 10 μm)
√ Wide spectral range
√ Designed to enable flexible experimentation setups
√ Plug & play and easy-to-use
-
Transmission
Thin solids, liquids, gases
5,000:1
42 or 66 cm⁻¹
Cooled InAsSb
USB-mini
Light source: W 116 × L 118 × H 115 mm3
Spectrometer module: W 116 × L 118 × H 115 mm3
Light source: 380 g
Spectrometer module: 980 g
SpetroMOST
Compact MIR sensor enabling accurate transmission-based analysis
7,000–2,130 cm⁻¹ (1.4 - 4.7 μm)
√ Compact design with low power consumption
√ Designed to enable flexible experimentation setups
√ Plug & play and easy-to-use
-
Transmission
Thin solids, liquids
1,700:1
42 or 66 cm⁻¹
PbSe
USB-C
Light source: W 50 × L 102 × H 47.5 mm3
Spectrometer module: W 85 × L 60 × H 46.6 mm3
Light source: 280 g
Spectrometer module: 210 g
Si-Spect
Remote FT-NIR spectral sensing through robust fiber connectivity
1,350 - 2,500 nm
√ Wide spectral range
√ Enables locating the sensor in a remote location when samples is in a inaccessible environment
√ Flexible options for light-sample interaction
Hazardous or high temperature zones, confined or remote locations, inside reactors, pipelines
Diffuse reflectance, transmission, and transflection. All depend on external setup &/or the fiber probe used
Homogenous solids, non-homogeneous solids, liquids, gels, pastes
>6,000:1
16 nm
Extended InGaAs
Ethernet
W 128.5 × L 125 × H 72.2 mm3
700 g
Si-Spect
Development platform for NIR analysis with configurable setup
1,350 - 2,500 nm
√ Wide spectral range
√ Designed to enable flexible experimentation setups
√ Plug & play and easy-to-use
-
Transmission, diffuse reflectance, transflectance
Solids: Films, thin polymers, tablets, powders pressed or in cuvettes
Liquids: Oils, beverages, alcohols, aqueous solutions in cuvettes or flow cells
>2,000:1
16 nm
Extended InGaAs
USB-C
Spectrometer W 63.5 x L 85 x H 47 mm3
Light source: W 50 × L 102 × H 47.5 mm3
Spectrometer 210g
Source 280 g
Si-Spect
Rugged FT-NIR for contactless continuous analysis of materials in motion
1,350 - 2,500 nm
√ Analysis from a distance without touching the sample
√ Continuous operation
√ Speedy response
√ Built-in self-reference for unmanned calibration
Conveyor belts, hoppers and chutes, robots, drones, steady machines, moving vehicles
Diffuse reflectance
Homogeneous Solids: powders, ground solids, textiles, fibers, thin films, plastic, leaves
Non homogeneous solids: granular solids, resins, blends, pellets
Liquids: opaque liquids
>2,000:1
16 nm
Extended InGaAs
Ethernet, Wi-Fi
W 278 × L 145 × H 145 mm3
2 kg
Si-Spect, PLC

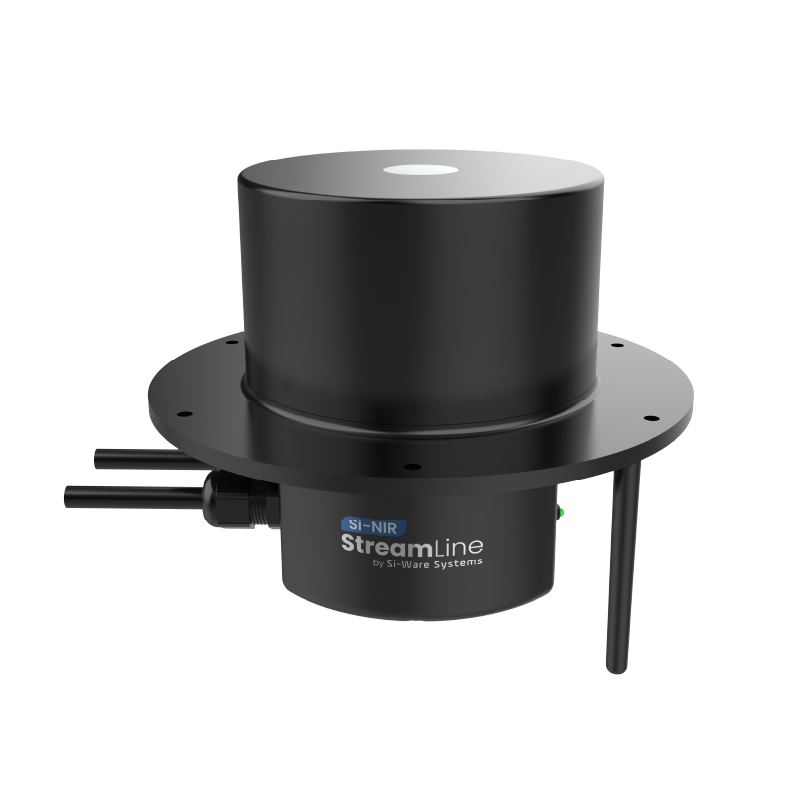

Adaptable Process-deployable FT-NIR for in-line, on-line use in factories and fields
1,350 - 2,500 nm
√ Continuous operation
√ Speedy response
√ Built-in self-reference for unmanned calibration
√ Adaptability and flexibility integration
Production line, robots, steady machines, moving vehicles
Diffuse reflectance
Homogeneous Solids: powders, ground solids, textiles, fibers, thin films, plastic, leaves
Non homogeneous solids: granular solids, resins, blends, pellets
Liquids: opaque liquids
>2,500:1
16 nm
Extended InGaAs
Ethernet, Wi-Fi
W 110 × L 110 × H 125 mm3
1.5 kg
Si-Spect, PLC

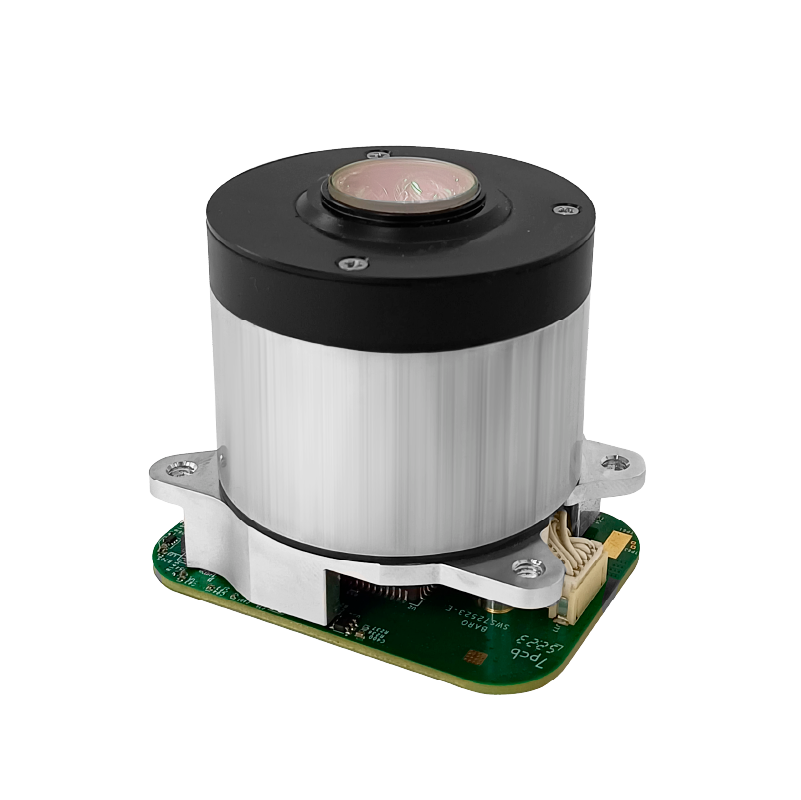

Compact OEM sensor delivering consistent readings from inconsistent materials
1,350 - 2,500 nm
√ Wide spectral range
√ Compact design
√ Large sample coverage
Handheld devices, robots, steady machines, moving vehicles
Diffuse reflectance. Transflectance can be enabled with external accessory.
Homogeneous Solids: powders, ground solids, textiles, fibers, thin films, plastic, leaves
Non homogeneous solids: granular solids, resins, blends, pellets
Liquids: opaque liquids or transparent liquids that contain particulates
>2,000:1
16 nm
Extended InGaAs
SPI
W 65 × L 46 × H 58.7 mm3
145 g
APIs
Easiest & fastest way to assess the world’s smallest FT-NIR
1,350 - 2,500 nm
√ Wide spectral range
√ PC operated
√ Plug & play and easy to use
-
Diffuse reflectance. Transflectance can be enabled with external accessory.
Homogeneous Solids: powders, ground solids, textiles, fibers, thin films, plastic, leaves
Liquids: opaque liquids or transparent liquids with reflective accessories
>2,000:1
16 nm
Extended InGaAs
USB-C, Bluetooth
W 100 x L 80 x H 45 mm3
550 g
Si-Spect, SDK
Plug-and-play toolkit for quick evaluation and prototyping of heterogeneous material analysis
1,350 - 2,500 nm
√ Wide spectral range
√ Large sample coverage
√ Dual mode for electrical interfaces to enable connection with PC or embedded systems
Handheld devices, robots, steady machines, moving vehicles
Diffuse reflectance. Transflectance can be enabled with external accessory.
Homogeneous Solids: powders, ground solids, textiles, fibers, thin films, plastic, leaves
Non homogeneous solids: granular solids, resins, blends, pellets
Liquids: opaque liquids or transparent liquids that contain particulates
>2,000:1
16 nm
Extended InGaAs
USB-C, Ethernet, Bluetooth
W 75 × L 60 × H 80.5 mm3
310 g
Si-Spect, SDK

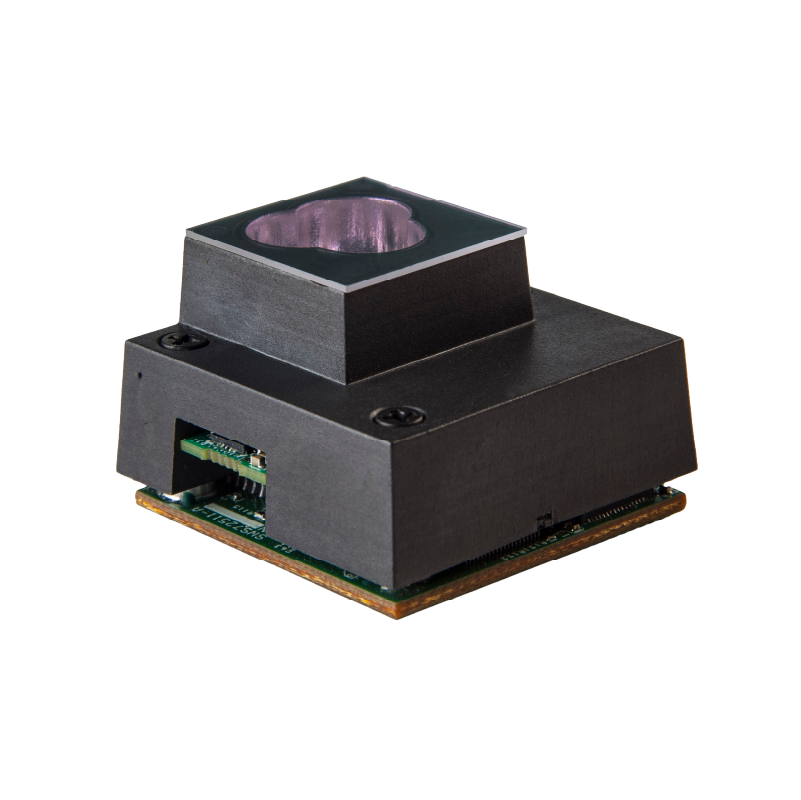

The smallest FT-NIR sensor built for integration
1,350 - 2,500 nm
√ Wide spectral range
√ Ultra compact design
√ Low power consumption
Handheld devices, robots, steady machines, moving vehicles
Diffuse reflectance. Transflectance can be enabled with external accessory.
Solids: powders, ground solids, textiles, fibers, thin films, plastic, leaves
Liquids: opaque liquids or transparent liquids with reflective accessories
>2,000:1
16 nm
Extended InGaAs
SPI
W 30 × L 30 × H 20 mm3
17 g
APIs
