Si-NIR Flex
Development platform for NIR analysis with configurable setup
What Is
Si-NIR Flex
sensor ?

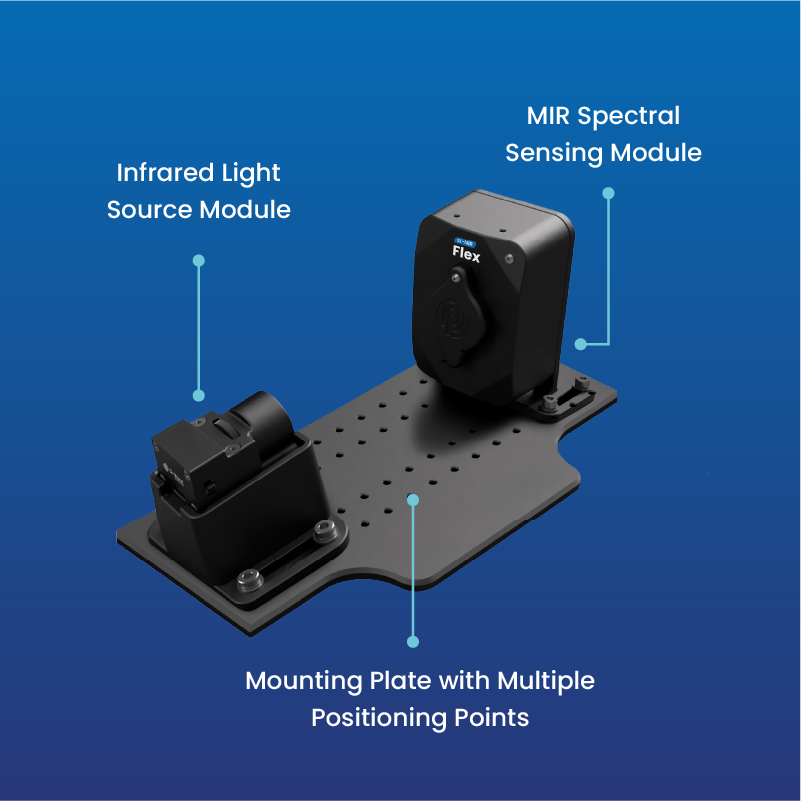

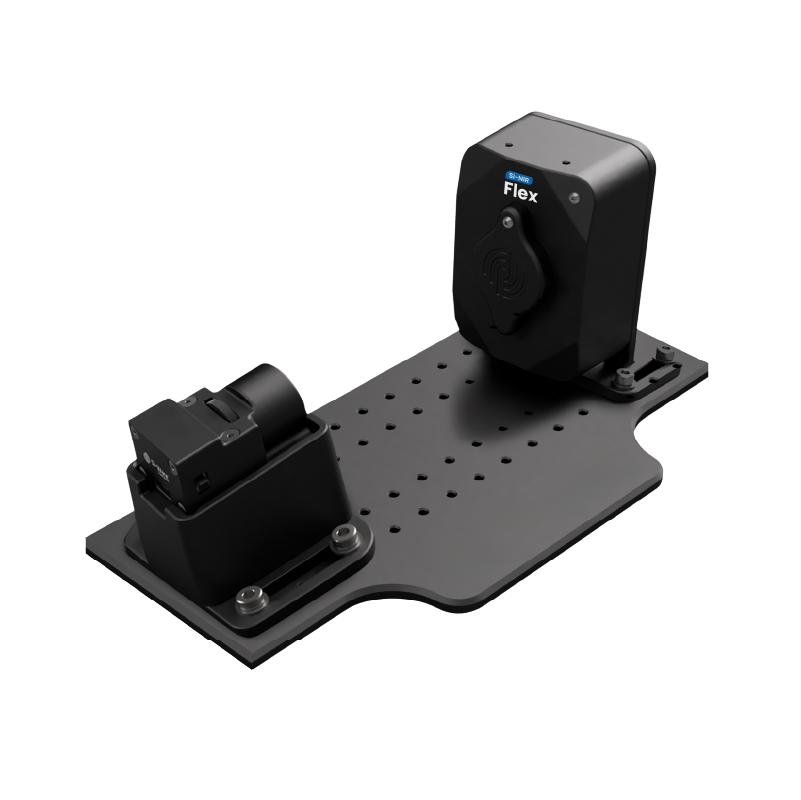

Si-NIR Flex is an FT-NIR spectral sensor featuring a separate light source and a spectrometer module. This configuration provides researchers and developers the flexibility to explore Si-Ware’s miniaturized NIR technology across various optical setups, alignments, path lengths, and sample interface designs. While optimized for transmission measurements that provide the highest signal-to-noise ratio, the configuration can also be arranged for other sample interaction geometries. In these setups, performance is not fully optimized but offers valuable flexibility for early investigation and evaluation of alternative configurations and measurement approaches, helping guide requirement definition for further development initiatives.
Want to see how this can power your next innovation?
Key Features & Advantages
√ Wide spectral range
√ Designed to enable flexible experimentation setups
√ Plug & play and easy-to-use
Material Analysis Capabilities
Solids: Films, thin polymers, tablets, powders pressed or in cuvettes
Liquids: Oils, beverages, alcohols, aqueous solutions in cuvettes or flow cells
Transmission, diffuse reflectance, transflectance
Need help validating your material performance?
technical specifications
1,350 - 2,500 nm
Separate light source and spectral sensing modules
>2,000:1
16 nm
Extended InGaAs
USB-C
Spectrometer W 63.5 x L 85 x H 47 mm3
Light source: W 50 × L 102 × H 47.5 mm3
Spectrometer 210g
Source 280 g
Si-Spect
Need more technical details for your application?
