Si-NIR Matrix DVK
Portable, plug-and-play FT-NIR material analysis device for quick evaluation and prototyping of non-homogeneous materials using Si-NIR Matrix sensor.
What Is
Si-NIR Matrix DVK
?

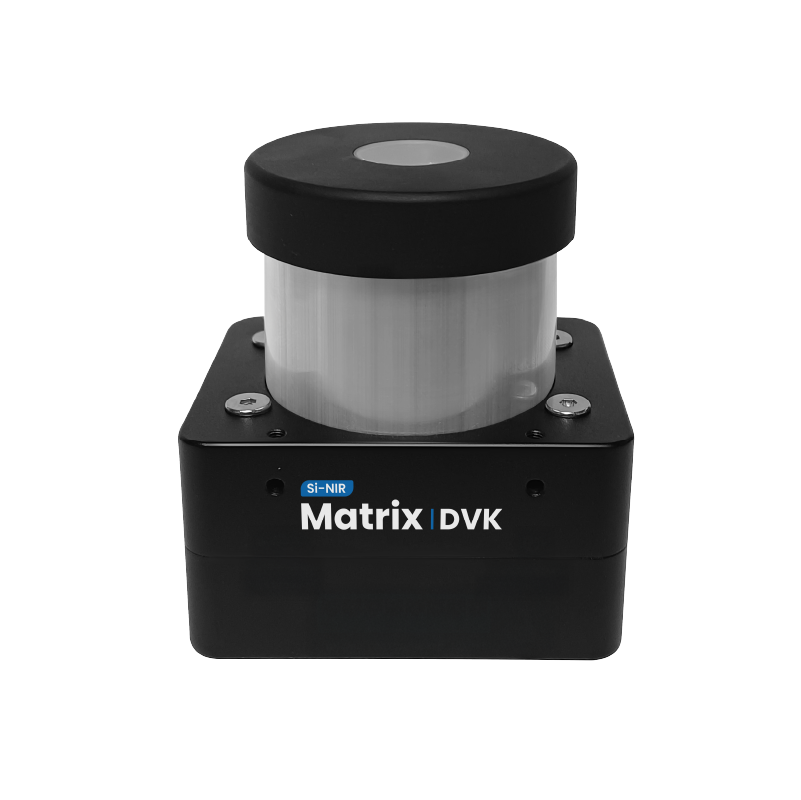

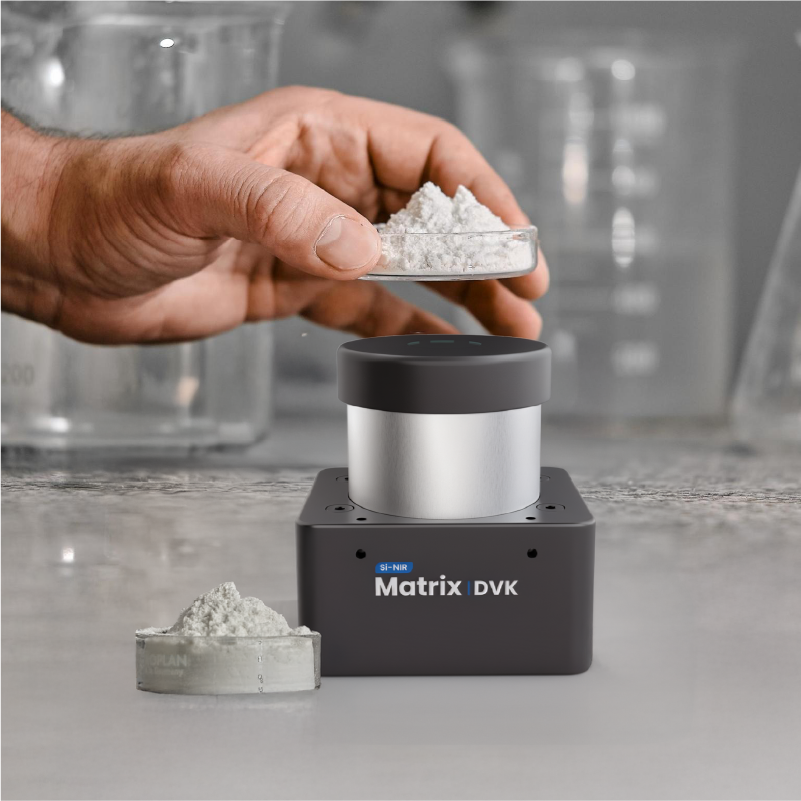

Si-NIR Matrix development kit is a portable, plug&play FT-NIR platform that enables both evaluation and prototyping of new solutions with advanced material analysis capabilities using the Si-NIR Matrix sensor.
Designed for engineers and researchers working with real-world, non-homogeneous materials, it provides a practical environment for quick experimentation, testing, and model development. Featuring dual electrical interface options, the kit supports a smooth transition from feasibility testing to functional prototypes and can be integrated into host systems for early-stage trials.
It includes all necessary hardware, accessories, software, and integration tools to make evaluation and development efficient and straightforward.
Want to see how this can power your next innovation?
Key Features & Advantages
√ Wide spectral range
√ Large sample coverage
√ PC & embedded systems Connectivity
Non-Destructive Material Analysis Capabilities
Homogeneous Solids: powders, ground solids, textiles, fibers, thin films, plastic, and leaves
Non-homogeneous solids: granular solids, resins, blends, pellets
Liquids: opaque liquids or transparent liquids that contain particulates
- Diffuse reflectance
- Transflectance can be enabled with external accessory
Need help validating your material performance?
Integration & installation Environments
Bring lab-grade spectral analysis to real-world system integration
Need help planning your integration path?
technical specifications
1,350 - 2,550 nm
Built-in light source and light collector for large sample coverage (10 mm diameter)
>2,000:1
16 nm
Extended InGaAs
USB-C, Ethernet
W 75 × L 60 × H 80.5 mm3
310 g
Si-Spect, SDK
Need more technical details for your application?
Product Related Resources
