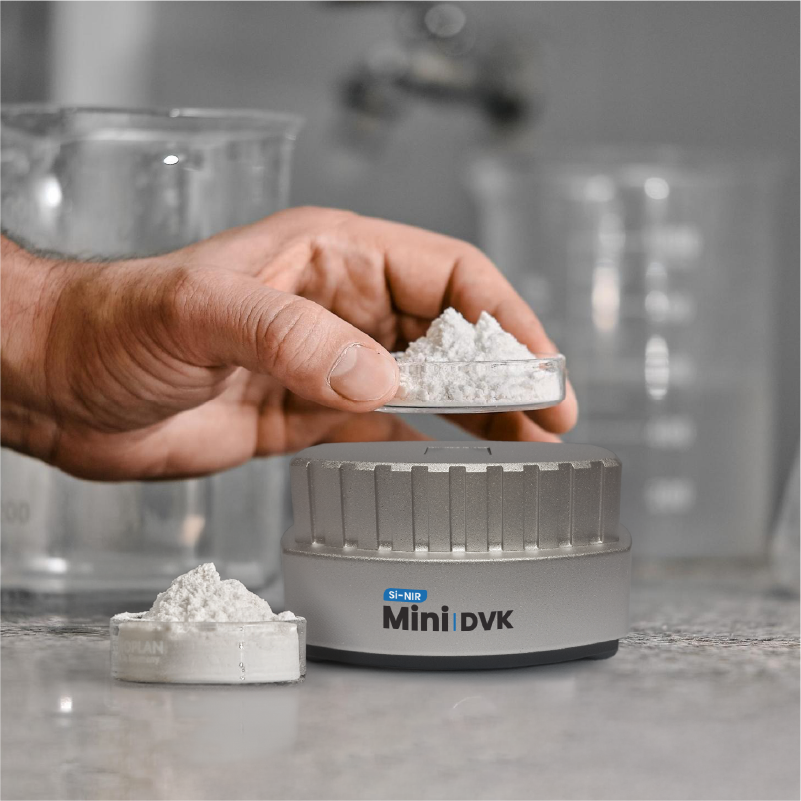

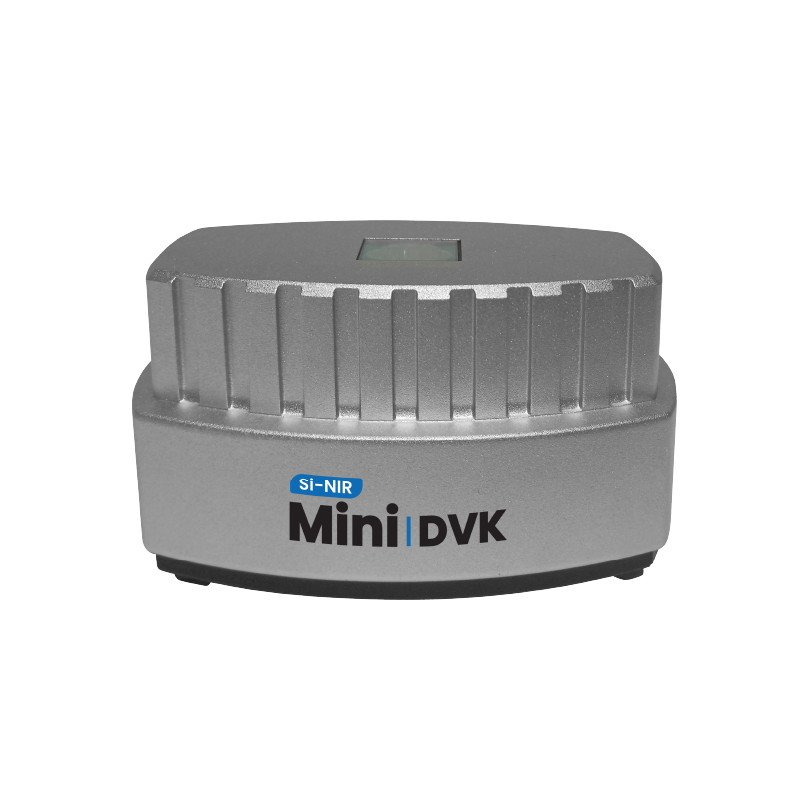

Si-NIR Mini DVK
Easiest & fastest way to assess the world’s smallest FT-NIR
What Is
Si-NIR Mini DVK
sensor ?
Si-NIR Mini DVK is a plug-and-play evaluation kit designed to help engineers and developers quickly assess the performance of the world’s smallest FT-NIR sensor. It includes all the required hardware and software for straightforward setup, control, and data visualization. Built for rapid feasibility testing, the Si-NIR Mini DVK allows users to collect reliable spectral data, evaluate the fit of the performance in target applications, and explore the potential of compact FT-NIR integration with minimal effort, making it the easiest and fastest way to experience the Si-NIR Mini.
Want to see how this can power your next innovation?
Key Features & Advantages
√ Wide spectral range
√ PC operated
√ Plug & play and easy to use
Material Analysis Capabilities
Homogeneous Solids: powders, ground solids, textiles, fibers, thin films, plastic, leaves
Liquids: opaque liquids or transparent liquids with reflective accessories
Diffuse reflectance. Transflectance can be enabled with external accessory.
Need help validating your material performance?
Integration & installation Environments
Bring lab-grade spectral analysis to real-world system integration
Need help planning your integration path?
technical specifications
1,350 - 2,500 nm
Built-in light source and light collector for small sample coverage (3 mm diameter)
>2,000:1
16 nm
Extended InGaAs
USB-C, Bluetooth
W 100 x L 80 x H 45 mm3
550 g
Si-Spect, SDK
Need more technical details for your application?
